Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50500.5mm

Name: Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 505005mm
Brand: Luojie
Price: 280 USD

Wholesale Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm from china suppliers

Brand Name : Luojie

Model Number : LJ-16

Certification : ISO9001:2015,SGS

Place of Origin : Hebei Province,China

MOQ : 1 cubic meters

Price : $280-1500/Cubic Meter

Payment Terms : L/C,T/T

Supply Ability : 500 Cubic Meter/Cubic Meters per Month

Delivery Time : 5-8 work days

Packaging Details : wooden box or customized

Product Name : Random Packing

Key Word : Metal Pall Ring

Material : Stainless Steel, Plastic

Type : Pall Rings, Raschig Rings, Berl Saddles, Intalox Saddles

Size : 10 mm – 100 mm (customizable)

Surface Area : 150 m²/m³ – 500 m²/m³

Density : 0.5 – 1.2 g/cm³

Application : Absorption Towers, Scrubbers, Gas Scrubbing Systems

Sample : Provide for Free

Warranty : 1 year

Contact Now

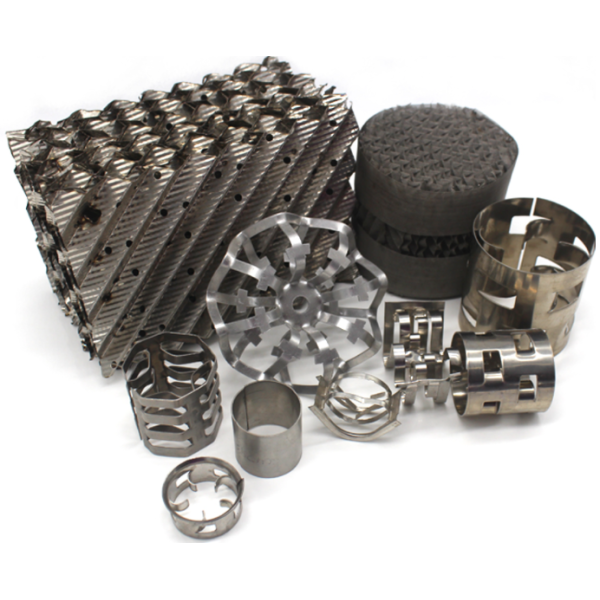

Stainless Steel Random Packing Pall Ring For Petroleum Refining 50*50*0.5mm

Description of Random Packing

Random packing is a fundamental passive mass transfer and separation medium extensively utilized in industrial columns, including distillation, absorption, stripping, and liquid-liquid extraction columns. It differs fundamentally from structured packing—whose units follow fixed, uniform geometric arrangements—by consisting of discrete, pre-formed units (such as rings, saddles, or hollow cylinders) that are randomly filled into the column. This random arrangement creates a tortuous internal structure with a high specific surface area, which acts as a channel for thorough contact between gas-liquid or liquid-liquid phases. Its core design goal is to maximize the interfacial contact area between the two interacting phases while minimizing fluid flow resistance (pressure drop), thereby enabling efficient mass transfer and ensuring stable operation of industrial separation processes.

Specifications of Random Packing


  	 			Size (Inch/mm)
 			Bulk density (304,kg/m3)
 			Number (per m3)
 			Surface area (m2/m3)
 			Free volume (%)
 			Dry packing factorm-1

 			1/4”
 			6*6*0.3
 			900
 			4000000
 			904
 			88.6
 			1307.4

 			3/8”
 			10*10*0.3
 			480
 			768000
 			482
 			93.8
 			583.8

 			1/2”
 			13*13*0.3
 			420
 			410000
 			415
 			4.8
 			489.2

 			5/8”
 			16*16*0.3
 			348
 			201000
 			344
 			95.5
 			393.2

 			1”
 			25*25*0.4
 			288
 			53500
 			212
 			96.2
 			229.8

 			1”
 			25*25*0.5
 			367
 			53500
 			216
 			95
 			237.2

 			1”
 			25*25*0.6
 			439
 			53500
 			219
 			94.2
 			244.1

 			1.5”
 			38*38*0.4
 			193
 			15180
 			143
 			97.2
 			148.4

 			1.5”
 			38*38*0.5
 			246
 			15180
 			145
 			96.7
 			151.7

 			1.5”
 			38*38*0.6
 			328
 			15000
 			146
 			95.9
 			154.6

 			2”
 			50*50*0.5
 			185
 			6500
 			106
 			97.5
 			128.5

 			2”
 			50*50*0.8
 			315
 			6500
 			108
 			96.8
 			130.5

 			2”
 			50*50*1.0
 			380
 			6500
 			132.5
 			96.0
 			134.0

 			3”
 			76*76*1.0
 			265
 			1920
 			69
 			97.4
 			79.6

 			3.5”
 			89*89*1.0
 			224
 			1220
 			61
 			97.1
 			66.2



Features of Random Packing

 Large surface area for efficient mass transfer
Low pressure drop with high void space
Good liquid distribution and wetting performance
Available in metal, plastic, and ceramic materials
High mechanical strength and chemical resistance
Easy installation and replacement
Suitable for distillation, absorption, and stripping systems


Applications of Random Packing

1. Distillation Columns

2. Gas Absorption Towers

3. Stripping and Desorption Units

4. Air Pollution Control Systems

5. Heat Recovery and Cooling Towers

6. Water and Wastewater Treatment

7. Chemical and Petrochemical Processing

8. Desiccant and Drying Towers

9. Gas Sweetening Units

10. Solvent Recovery and Purification

Stainless Steel Random Packing Pall Ring Media For Petroleum Refining 50*50*0.5mm
