Galvanized Steel Livestock Panel Fence For Cattle Corral Yard
Livestock Fence Description
Livestock Panel are made from heavy gauge bar design with a strong vertical centre support in the middle to make the panels structure stronger. Panels are hot-dipped galvanized for maximum corrosion resistance and long life durability. Our corral panel is very easy to set up and dismantle,which are perfect for rounding up cattle or sheep in the fields, penning calves, horse runs and arenas, perimeter fencing. Heavy duty used horse fence panels for farming,galvanized used horse fence for livestock breeding,goat/sheep fence panel, as its name displays, it can form the large Livestock enclosed yard, which also named as .Horse/Cattle/Cow/Sheep/Goats Corral Panel, Horse/Cattle/Cow/Sheep/Goats Yard .
Livestock fence panel is made with round, square, and oval pipe.Our fence panel is produced under professional cut short machine, welded team and packing technology. It is widely used in New Zealand, Australia, America, Western countries and so on.Its surface has undergone hot-dip galvanizing treatment and electrostatic powder spraying process, which has the characteristics of anti-corrosion and durability.
Livestock Fence Advabtages

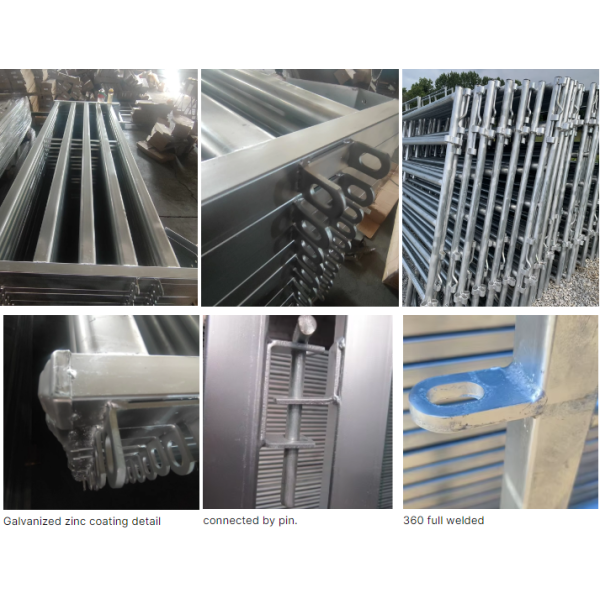

1.High-quality raw materials
Preferred galvanized steel pipes.Good corrosion resistance and aging resistance
2.Laser cutting professional welding
Our factory is capable of professional laser cutting as per the dimensions you provide, followed by welding with smooth and secure weld joints.
Finally, surface treatment is carried out, with customizable colors as shown in the figure.
Livestock Fence Specification
| We can produce according to the drawings or your specific specifications, and we also provide professional personalized customization services |
| Rail Type | Square | Oval | Round |
| Vertical Rail (number:2/3) | 40*40*1.6/2mm | 50*50*1.6mm | OD 32mm*2mm |
| 50*50*2mm | 50*50*2mm | OD 42mm*2mm |
| 60*60*2mm | 60*60*3mm | OD 42mm*2mm |
| Horizontal Rail(number:5/6) | 40*40*1.6/2mm | 60*30*1.6mm | OD 32mm*1.6mm |
| 50*50*2mm | 80*40*2mm | OD 32mm*2mm |
| 60*60*2mm | 115*42*2mm | OD 42mm*2mm |
| Surface Treatment | Hot dip galvanizing or powder coated |
| Height | 1.6m, 1.7m, 1.8m, etc |
| Length | 2.1m 2.2m 2.5m 3.2m 4.0m,etcPlease note : both length and height can be customized according to your requirements |
| welding | Bars and post brackets are fully welded,each weld point is protected with epoxy paint |
Livestock Fence Application

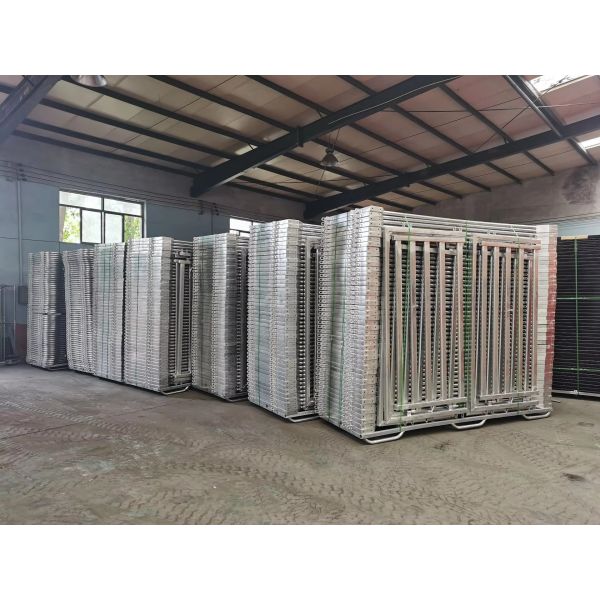

Livestock Fence Package
Every year, a large number of products are exported to various parts of the world, and we do our best to provide customers with high-quality products and guaranteed after-sales service
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
4. other package is ok.
